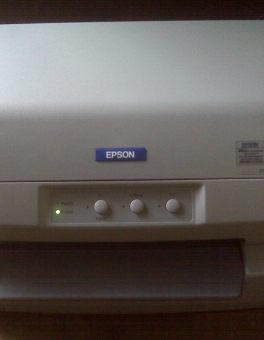

Epson PLQ 20 Passbook Printer

MODEL NUMBER	PLQ-20 Series
Printing Technology
Print Method	Impact dot matrix
Number of Pins in Head	24 pins
Colour	Black
Print Direction	Bi-direction with logic seeking
Control Code	PLQ-20/20M: PR2 emulation, ESC/P2, IBM PPDS emulation, IBM 4722 emulation* PLQ-20D/20DM: PR2 emulation, ESC/P2, IBM PPDS emulation, IBM 4722 emulation
Printer Speed (10 / 12 cpi)	PR2 emulation	ESC/P2
High Speed Draft	480 / 432 cps	480 / 576 cps
Draft	360 / 360 cps	360 / 432 cps
NLQ	180 / 180 cps	NA
LQ	120 cps / 144 cps	120 cps / 144 cps
Print Characteristics
Character Sets	International, PC-437 International, OCR-A
Barcode Fonts
PR2	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Coda bar (NW7), Industrial 2 of 5
ESC/P	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Printable Columns (10 / 12 cpi)
Pitch	94 / 112 cpl
Paper Handling
Paper Feeding	Friction Feed (Front manual)
Paper Path	Manual Insertion (Front in, Front out / Front in, Rear out)
Paper Size
Passbook
Width	110 – 241.3mm
Length	Horizontal seam: 127 – 220mm

Vertical seam: 85 – 220mm
Total Thickness
Max. 2.6mm (open passbook)
Weight
95 – 116 g/m2 Cut Sheet (Single)
Width
65 x 67 mm
Length
245 x 297 mm
Thickness
0.065 – 0.19 mm
Weight
52 – 157 g/m2 Cut Sheet (Multi-part)
Width
65 x 67 mm
Length
245 x 297 mm
Copies
1 original + 6 copies
Thickness
0.12 – 0.53 mm
Weight
34 – 50 g/m2 Line Spacing4.23 mm (1/6 inch) Acoustic Noise53 dB(A) (w/o MSRW)
55 dB(A) (w/ MSRW) Input Data BufferPLQ-20/20M: 64 KBPLQ-20D/20DM: 128KB InterfacePLQ-20/20M: Bi-directional Parallel
9-pin Serial
USB 2.0 Full speed

PLQ-20D/20DM: 9-pin Serial x 2
USB 2.0 Full speed Ribbon Cartridge StandardFabric Ribbon Cartridge (Black)
Ribbon Life
5 million characters (LQ 10cpi, 48 dots/character)
10 million characters (Draft 10cpi, 24 dots/character) Reliability Mean Print Volume Between Failure (MVBF)7 million lines Mean Time Between Failure (MTBF)10,000 Power On Hours (POH) Print Head Life400 million strokes/wire Environmental Conditions (Operating) Temperature5 ~ 35°C Humidty10 ~ 80% RH Electrical Specification Rated VoltageAC 220 – 240 V Rated Frequency50Hz – 60Hz (49.5 – 60.5 Hz) Power Consumption
Operating
Approx. 60W (ENERGY STAR Compliant)
Sleep Mode
Approx. 8W
Power Off
0W in powered off mode

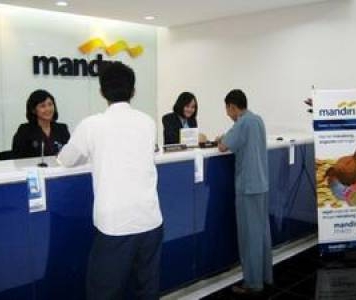

Printer passbook Epson PLQ 20 sering digunakan oleh Bank, BPR, BKK, SAMSAT, Polres, perusahaan swasta dan untuk mencetak buku nikah di Kantor Urusan Agama

Kegunaan lainnya adalah printer passbook Epson PLQ 20 ini sangat cocok untuk mencetak kertas atau slip ukuran kecil seperti STNK, BPKB, surat nikah, cek dan giro dll yang membutuhkan cetakan ukuran A5 atau bahkan lebih kecil lagi

Printer Epson PLQ20 ini juga bisa mencetak maksimal sampai 4 ply

Berikut ini video yang menggambarkan isi dari  Epson PLQ 20 passbook printer

Hubungi kami jika ingin membutuhkan informasi lebih lanjut

0851 0050 3787, 0851 0150 3799
