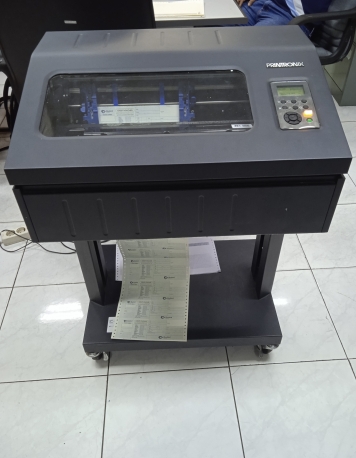

Printronix P8000 Open Pedestal

Printer Printronix P8000 Open Pedestal Specification

• Kemampuan resolusi tinggi yang dapat meningkatkan pengalaman pengguna dengan dukungan huruf Asia

Connectivity/Interfaces

• Standard: USB 2.0 and Serial RS-232
• Optional:
  • Ethernet – 10/100 Base T
  • Parallel – IEEE-1284 Centronics

Character Pitch (characters per inch)

• 10, 12, 13.3, 15, 16.7, 17.1, 20

Line Spacing (lines per inch)

• 6, 8, 10.3, n/72, n/216

Graphics Resolution

• 180 dpi Horizontal, 144 dpi Vertical (max)

Dot Size

• 7 mil (.42mm)

Emulations

• Standard: LP+ (Printronix P-Series, P-Series XQ, Serial Matrix, IBM ProPrinter III XL, Epson FX-1050)
• Optional: ANSI, IPDS, PCL 2, DEC LG, TN5250/TN3270, Graphics emulation PGL and VGL

Character Sets

• 99 plus character sets including ECMA Latin 1, DEC Multinational, IBM Code Page 437 and 850, OCR A, OCR B, UTF8 encoded Unicode

Character Styles

• Bold, italic, double wide, double high, overstrike, underline, subscript and superscript

Fonts

• NLQ Serif, NLQ Sans Serif, Data Processing, High Speed, OCR A, OCR B

Barcodes

• 30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

• Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

• Microsoft Window XP/Vista/2003/2008/7, Linux

Power Voltage

• AC input range 100-240 VAC, 50/60 HZ

Power Consumption (typical-maximum)

• P8005 – 280 watts Max 320 watts
• P8010 – 300 watts Max 320 watts

Power Consumption (Power-Saver Mode)

• Less than 5 watts

Operating Temperature

• Environmental Operating Temperature 50° to 104° F, 10° to 40° C

Paper Type

• Continuous, fan folded, edge-perforation

Consumable/Ribbons

• Standard Life Cartridge Ribbon: 17,000 pages
• Extended Life Cartridge Ribbon: 30,000 pages

Page yield based on ISO LSA Page, 8.5? x 11? letter-size, approximately 5% coverage

Height:

• 9” (911.8 mm) with basket
• 9” (911.8 mm) without basket

Width:

• 8″ (655.3 mm) with basket
• 8″ (655.3 mm) without basket

Depth:

• 1″ (739.1 mm) with basket
• 1” (485.1 mm) without basket

Printer Weight:

• 115 lbs (52 Kg) with basket
• N/A – without basket

Shipping Printer Weight:

• 160 lbs (73 Kg) with basket
• N/A – without basket

P8000H

Connectivity/Interfaces

• Standard: USB 2.0 and Serial RS-232
• Optional:
  • Ethernet – 10/100 Base T
  • Parallel – IEEE-1284 Centronics

Character Pitch (characters per inch)

• double byte characters: 5, 6, 7, 7.5
• single byte characters: 10, 12, 13.3, 15, 16.7, 17.1, 20

Line Spacing (lines per inch)

• 6, 8, n/120, n/180

Graphics Resolution

• 180 dpi Horizontal, 180 dpi Vertical (max)

Dot Size

• 0 mil (.28 mm)

Emulations

• Standard: LQ1600K
• Optional: OKI (HANSI GB)

Character Sets

• Hanzi GB: GB 18030-2000, UTF8 encoded Unicode
• Hanzi BIG5: BIG5, CNS, TCA, WTEN, IBM 5550, TELETEXT,WANG, BIG5+, BIGE, UTF8 encoded Unicode
• Hangul KS: Unified Hangul code, UHC (KSC 5601-1992), UTF8 encoded Unicode
• KANJI SJIS: Shift JIS, UTF8 encoded Unicode

Fonts

• Letter Quality, Near Letter Quality, Normal, High Speed, Super High Speed, Ultra High Speed, SONG for Hanzi GB, MING for Big5

Barcodes

• 30 resident symbologies, including Code 39, EAN 8/13, UPC A/E, Intelligent Mail, Postnet, Royal Mail, Interleaved 2 of 5, PDF 417, Data Matrix

Printer Software

• Printronix PrintNet Enterprise remote management software, SAP device support

Printer Drivers

• Microsoft Window XP/Vista/2003/2008/7, Linux

Power Voltage

• AC input range 100-240 VAC, 50/60 HZ

Power Consumption (typical-maximum)

• P8003H / P8203H 300 watts Max 320 watts
• P8006H / P8206H 435 watts Max 601 watts
• P8208H 450 watts Max 601 watts

Power Consumption (Power-Saver Mode)

• Less than 5 watts

Consumable/Ribbons

• Standard Life HD Cartridge Ribbon: 18,000 pages
• Extended Life HD Cartridge Ribbon: 34,000 pages

Page yield based on ISO LSA Page, 8.5? x 11? letter-size, approximately 5% coverage

Height:

• 9” (911.8 mm) with basket
• 9” (911.8 mm) without basket

Width:

• 8″ (655.3 mm) with basket
• 8″ (655.3 mm) without basket

Depth:

• 1″ (739.1 mm) with basket
• 1” (485.1 mm) without basket

Printer Weight:

• 115 lbs (52 Kg) with basket
• N/A – without basket

Shipping Printer Weight:

• 160 lbs (73 Kg) with basket
• N/A – without basket
